Low recycle adsorbent

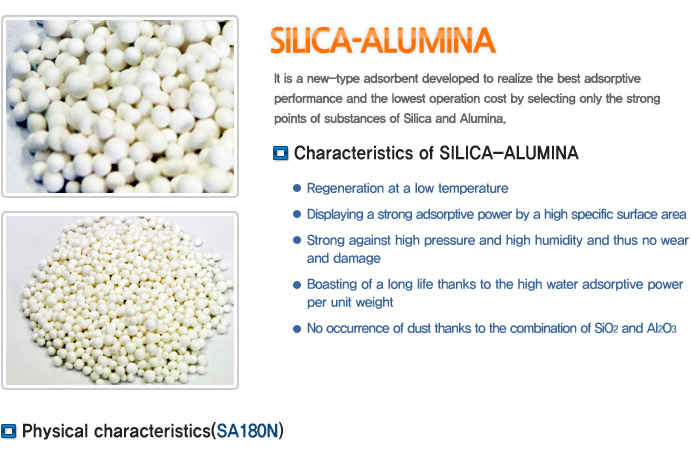

Low recycle adsorbent
Chemical composition
Al
2
O
3
:15%, SiO
2
: 84.9%, Na
2
O : 0.1%
product size (old type)
3 ~ 5.0§®¡Ë
Surface Area
600§³/g
Bulk Density
745kg/§©
Crush Strength
with in 15kg
Water Adsorption
@50%RH : 20.3%, @90%RH : 38.1%
Regeneration Temp
around 150¡É
Item
SA180N
(SA KOREA)
Silica Alumina
(the other company)
ALUMINA
(F TYPE)
Molecular Sleves
(4A)
Product Form
Silica+Alumina
Silica+Alumina
Alumina
Mixed composition
Raw materials of Silica
Chinese ones used
Chinese ones used
-
-
Chemical
composition(%)
Al
2
O
3
15
15.3
92.7
45
SiO
2
84.9
84.6
0.02
37
Na
2
O
0.1
0.1
0.3
18
Product Size
3 - 5.0mm
2.4 - 4.75mm
4.7mm
2.5 - 5.0mm
Smashing rate at the time
release of product
with in 5%
17%(morer then 15%)
with in 5%
with in 5%
Surface Area
600§³/g
586§³/g
320 - 360§³/g
-
Bulk Density
745kg/§©
768kg/§©
769kg/§©
765kg/§©
Crush Strength
with in 15kg
-
25kg
6 - 10kg
Regeneration Temp
150¡É
140¡É - 160¡É
200¡É
220¡É
Occurrence of dust (when
contacting the palms)
Fine
Fine
staining
Fine
Unit of Packaging
25kg Bag
800kg Bag
800kg Bag
22.7kg Bag
170kg Drum
907kg Bag
135kg Drum
Adsorbent Name→
↓Category
When using Alumina 100%
When using
SA180N
Silica Alumina 100%
Regeneration temperature of adsorbent
200¡É ~ 220¡É
around 150¡É

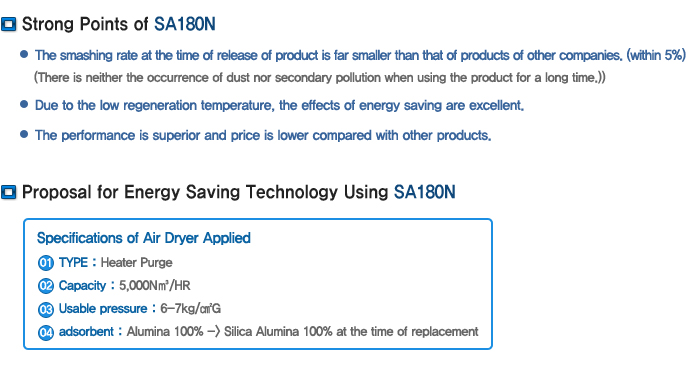

Air Dryer Spec.
Capacity
5000N§©/HR
5000N§©/HR
Amount of cooling purge
160N§©/HR
110N§©/HR
Blower
15kw
11kw
Heater
82kw
46kw
Heating time
2.5H
2.5H
Cooling time
1.5H
1.5H
Amount of use of adsorbent
2200KG/2top
2200KG/2top
Annual operation cost
Amount of consumption of regenerated air
160N§©/HR x 9H x 13won x 360day = \6,739,200
110N§©/HR x 9H x 13won x 360day = \4,633,200
Electric Heater(70%)
82kw x 0.7 x 15H x 98won x 360day = \30,376,080
46kw x 0.7 x 15H x 98won x 360day = \17,040,240
Blower(100%)
15kw x 15H x 98won x 360day = \7,938,000
11kw x 15H x 98won x 360day = \5,821,200
Total of annual operation cost
\ 45,053,280 - 100%
\ 27,494,640 - 61%
